Dolphin DNC-2800



  • Max. Speed : 3000RPM
  • Adjustable Work Frame Size
  • Minimized Space
  • Simplified Mechanism
  • Up-Down Auto Trimming
  • Up-Down Auto Lubrication
  • Safety System
  • Repeat function of small design
  • Perfect replacement of hand Works
  • Easy to et up the stitch length
  • Simplified control panel
  • Auto thread detecting system
  • Back stitch function
  • Various design loading
  • Design editing function
  • Convenient design S/W

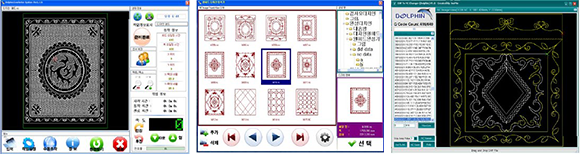

Programing Design & Operating

  • Support various types of design format
  • Support foreign languages with conversational control panel





MODEL DNC-2800
CONTROL SYSTEM WINDOWS XP EMBEDED SYSTEM FOR MATTRESS QUILTING MACHINE
MONITOR TFT LCD COLOR TOUCHSCREEN
MEMORY CAPACITY 40G BYTE
MAX.WORKING SPEED 0 ~ 3,000 RPM
MAX. STIT AREA 2,450 ( W ) * 2,600 ( L ) - DNC 2400 MODEL
2,850 ( W ) * 3,200 ( L ) - DNC 2800 MODEL
3,350 ( W ) * 3,200 ( L ) - DNC 3300 MODEL
TRIMMING SYSTEM AUTO ( UPPER / LOWER )
THREAD DETECT SYSTEM AUTO
OILING SYSTEM AUTO ( UPPER / LOWER )
NEEDLE DB*5 # 18 ~ 23
ROTARY HOOK LARGE SIZE
MACHINE DIMENSION 3,950 ( W ) * 4,800 ( L ) * 1,250 ( H ) - DNC 2400 MODEL
4,350 ( W ) * 4,800 ( L ) * 1,250 ( H ) - DNC 2800 MODEL
4,850 ( W ) * 4,800 ( L ) * 1,250 ( H ) - DNC 3300 MODEL
MOTOR SERVO MOTOR * 3 ( MAIN,X,Y AXIS)
