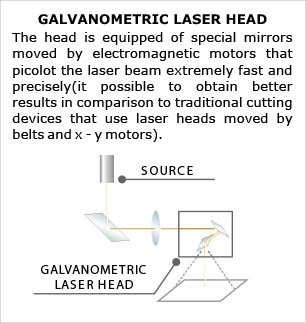

2 AXIS HEAD (X AND Y) - 300 X 300 MM FIELD

- The 3rd axis (Z) is mechanical(software driven): the head raises and lowers according to fabric thickness parameter

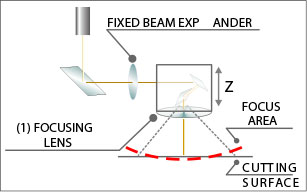

- To focus the cutting surface a focusing lens is used(1).

- Max. cutting area 300 x 300 mm.

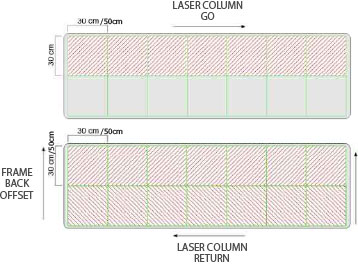

- Thanks to the combination of laser column displacement along the X axis and frame along Y axis, you can cut designs larger than 300 x 300 mm. The software, in fact, automatically divides and optimizes the design in smaller cutting areas and drives both the laser column and the

 frame. First the laser column moves and cut

 forward, then the frame  offsets, finally the column cuts while returning to its origin.
